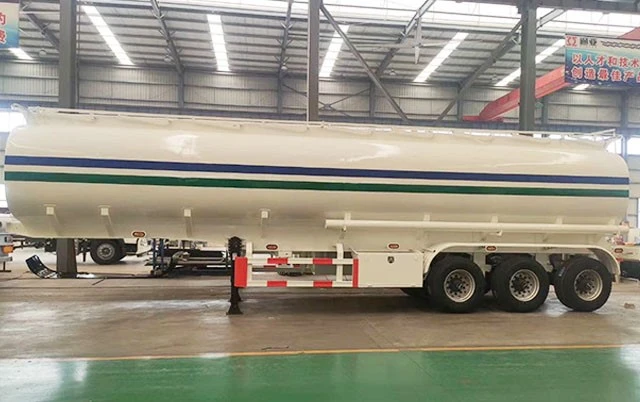

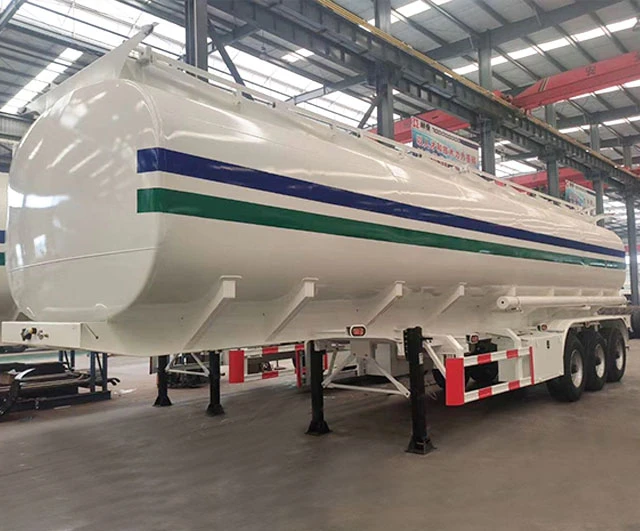

Tri Axle Fuel Tanker Trailer
1.We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.2. Tanker body welded by advanced large-scale special welding machines automatically.3. Water filled test ensuring the tank's high sealed and avoiding the oil leaking.We adopt famous brand parts for our trailers, ensuring good character.
הצגת המוצר
Tri axle fuel tanker trailer is generally used to transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, ether and other liquid substances.
Fuel tanker trailer has a capacity of 30000-60000 liters, which is generally used for long-distance transportation, transporting liquid substances to all over the world, so as to realize the reasonable distribution and use of resources.
|
12000*2500*3650 ( customized according to needs) |
|
|
54000liters |
|
|
6 |
|
|
50T (Reference) |
|
|
11.6T |
|
|
High Strength Steel Q345 |
|
|
3 axle; FUWA |
|
|
Dual Line brake system, T30/30 Chamber, Wabco emergency valve, ABS/EBS optional |
|
|
Mudguard, Ladder, 1 standard toolbox, 1 coat of anti corrosive prime, 2 coats of final paint, Polyurethane paint, Landing gear, 9.0-22.5 steel wheel rim, Fire extinguisher, 4-inch Pneumatic bottom valve, 500mm Aluminum alloy manhole cover, Q345/6mm steel sheet, conforming ADR (According to customer needs) |
|
|
By bulk cargo ship or ro-ro |
1. 3D Drawing and HyperMesh & Ansys
2. ADR standard API Adaptor
Crucial to any API bottom loading system, match 3″ or 4″ couplers
3. API Sockets Optic
4. ADR standard Manhole with vapor vent
16″ or 20″, Aluminum material for a longer lifetime
5. More safety by 7%Lower center gravity Gooseneck design
6. 12% Larger volume by semi-elliptical section barrel design
7. Long service life by tanker automatic arc welding
( below 41 cbm can load in a 40hq, more than 42 cbm needs a big container and a small container. )
Ro- Ro shipment. The price of Ro- Ro shipment is the most expensive of all ways. It can protect the trailer well and keep the completeness of the trailer.
. It is one of the containers but it has lengthy limited that is about 11.7 meters.
